Big Bag Container 2 mᶾ

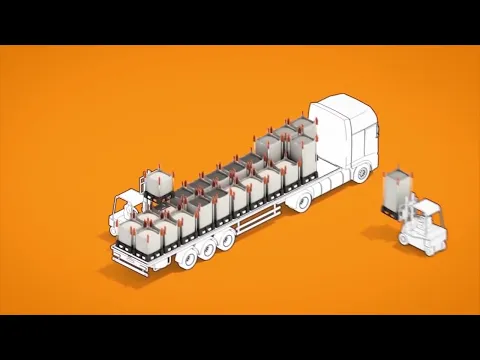

  • Larger & More Robust: For those who need even more space, the 2 mᶾ container offers storage for up to 1,500 kg. The base supports big bags of up to 1-2 m³. Vertical telescopic rods and Φ60 mm steel pipes ensure a volume of up to 2 mᶾ inside the bag. Plus, its compatibility with automated handling systems like forklifts and conveyors means hassle-free logistics.
  • Flexible & Efficient: Adjust the container’s height as per your needs, enjoy quicker mounting and folding, and benefit from fewer components ensuring rapid installation and disassembly.
  • Space Optimized: Unlike the 1 mᶾ versions which leave space between stacks, the 2 mᶾ version optimizes horizontal space, ensuring maximum efficiency in storage.

Important Technical Specs:

Standard volumes:

  • 950x950x1050 mm – 1 mᶾ - 50 kg system weight
  • 950x950x1600 mm – 1.6 mᶾ - 56 kg system weight
  • 950x950x2000 mm – 2 mᶾ - 60 kg system weight

FIBC bags have a 950x950 mm base and may vary in height between 400 mm and 2300 mm, adjustable by the built-in telescopic rods.

The Big Bags systems are compatible for both manual and automated operating. They can be installed on dedicated frames for manual unloading or on metal containers with wheels for unloading and placement on a conveyor.

Anchoring the bags to the 4 telescopic rods can be made either by using a spring-head system (for when the bags are put in place empty and loaded once installed) or with a lock-head system (when the bags are first loaded and then placed on the system; or for bags with short loops).

Notable Features:

  • Adjustability in container height.
  • Funnel-shaped emptying hole with a safety hatch for enhanced safety.
  • Enhanced robustness with a system weight of approximately 50-60 kg.
  • Quicker installation with fewer components.
  • Compatibility with standard Big Bags.
  • Available with food use certification.
